The default cube with shortcut

ページ名:The default cube with shortcut

Default Cube をベースに、各種処理とショートカットの一覧(2.79b以前)

(See Also: The Default Cube )

Object Interaction Mode

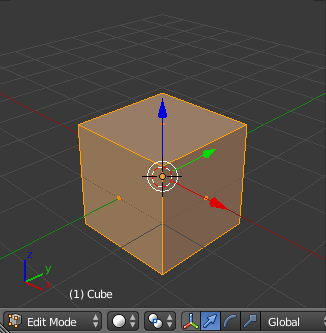

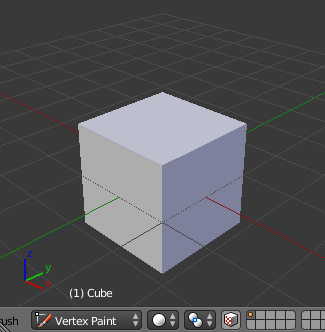

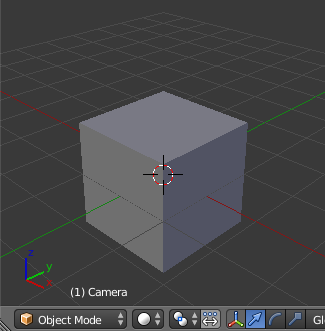

Object Mode(Tab:EditModeに切替) Edit Mode(Tab:ObjectModeに切替) VertexPaint Mode (No Shortcut)

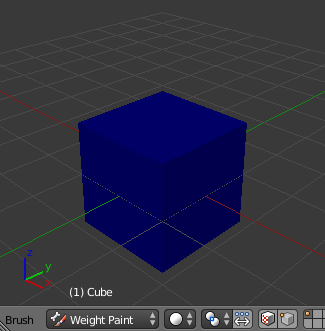

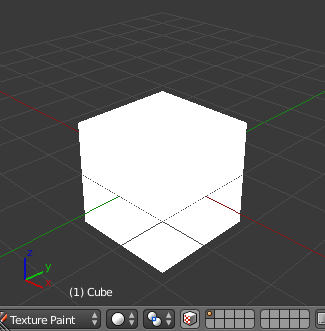

Weight Paint Mode (No Shortcut) Texture Paint Mode (No Shortcut)



Select Mode

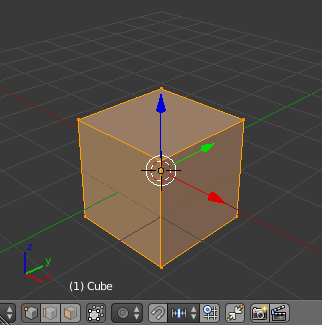

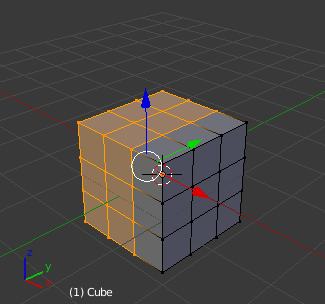

Vertex Select Mode
(Ctrl+Tab → "Vertex")

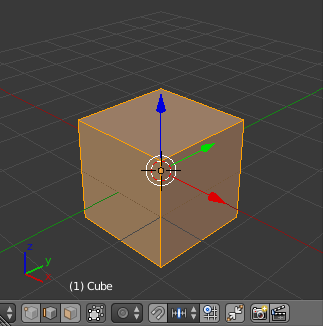

Edge Select Mode
(Ctrl+Tab → "Edge")

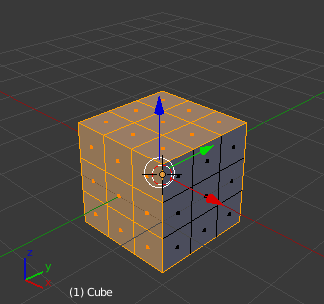

Face Select Mode
(Ctrl+Tab → "Face")

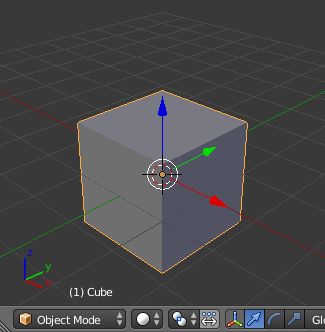

Translation manipulator

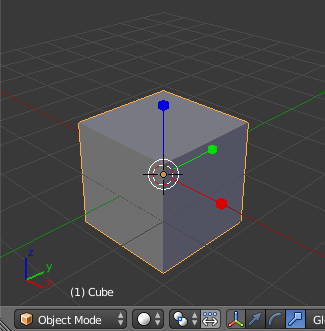

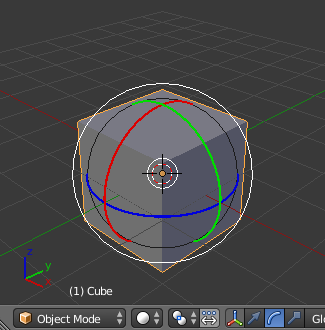

Translate (No Shortcut) Rotate (No Shortcut) Scale (No Shortcut)



Subdivide (w → "Subdivide")

Number of Cuts :1
Smoothness: 0.0
Fractal: 0.0

Number of Cuts :2
Smoothness: 0.0
Fractal: 0.0

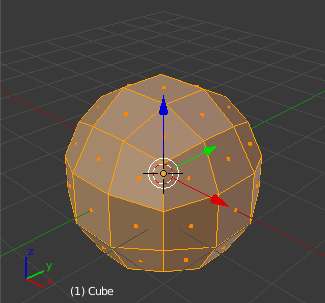

Number of Cuts :2
Smoothness: 1.0
Fractal: 0.0

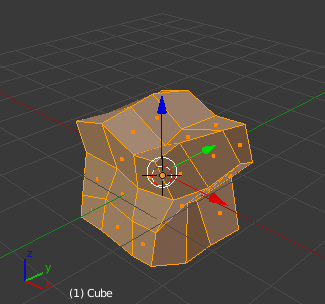

Number of Cuts :2
Smoothness: 0.0
Fractal: 2.0

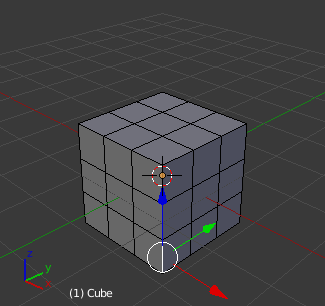

Select Method

Vertex Select Mode

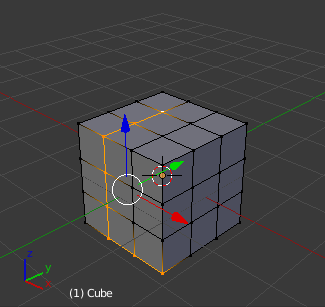

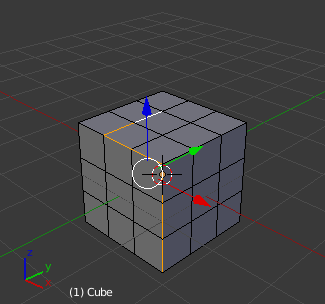

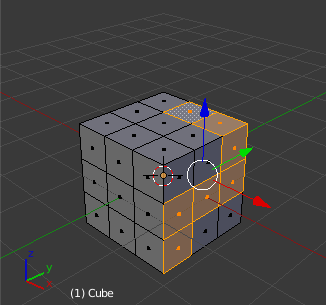

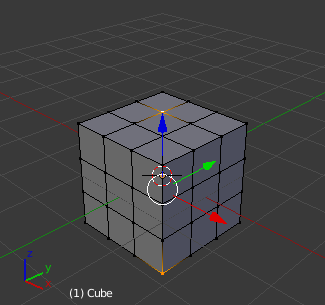

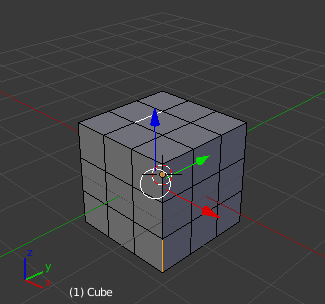

Select(LMB) Additional Select(Shift + LMB) Shotest Path Select(Ctl + LMB)

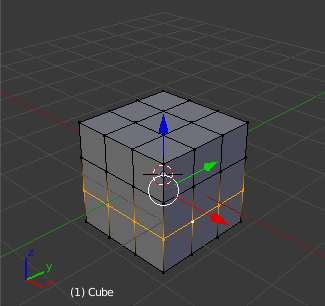

Loop Select(Alt + LMB)

* LMB = Left Mouse Button, RMB = Right Mouse Button



Edge Select Mode
Select(LMB) Additional Select(Shift + LMB) Shotest Path Select(Ctl + LMB)

Loop Select(Alt + LMB)

* LMB = Left Mouse Button, RMB = Right Mouse Button

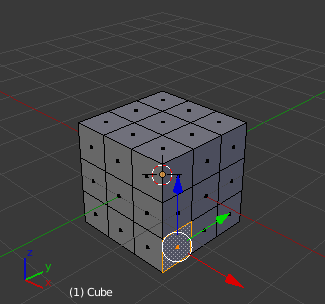

Face Select Mode

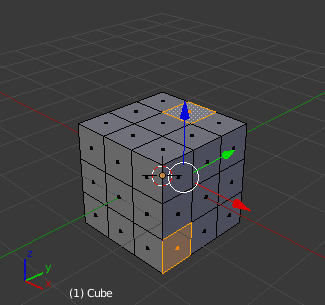

Select(LMB) Additional Select(Shift + LMB) Shotest Path Select(Ctl + LMB)

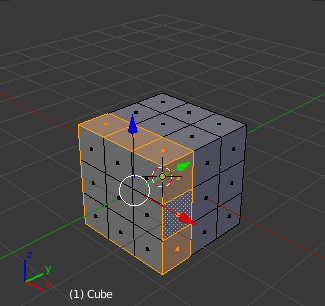

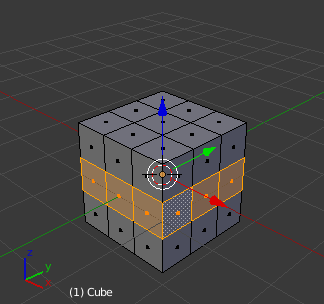

Loop Select(Alt + LMB)
Faceの右または左側をクリック

Loop Select(Alt + LMB)
Faceの上または下側をクリック


* LMB = Left Mouse Button, RMB = Right Mouse Button



Select Inverse

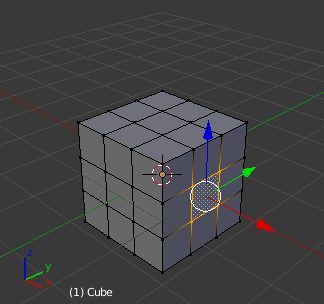

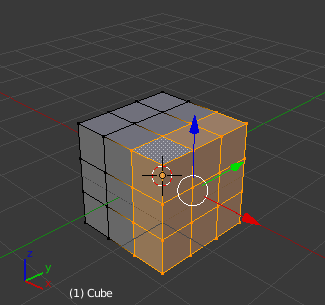

Selected Select Less(Ctl + Numpad-) Select More(Ctl + Numpad+)

Select Inverse(Ctl + i)
Vertex Select Mode

Select Inverse(Ctl + i)
Edge Select Mode
Select Inverse(Ctl + i)
Face Select Mode

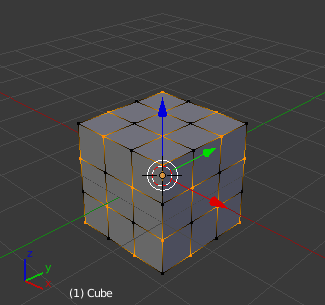

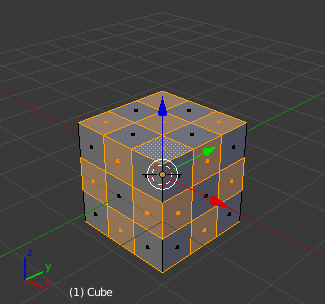

Checker Deselect

全選択(A)からのChecker Deslect

Checker Deslect (No Shortcut)
Vertex Select Mode
Checker Deslect (No Shortcut)

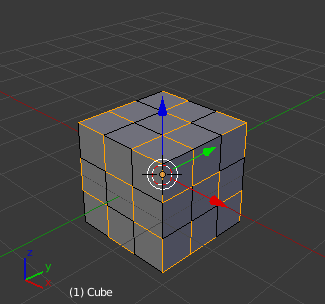

Edge Select Mode
Checker Deslect (No Shortcut)
Face Select Mode

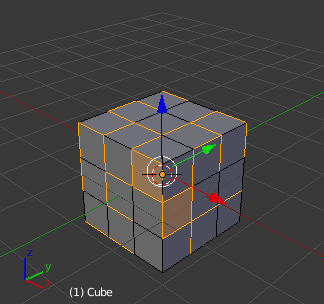

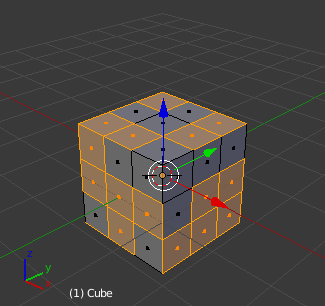

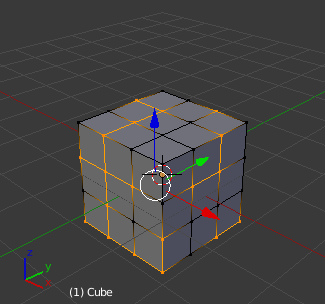

Random Select

Random Select(No Shortcut)
Vertex Select Mode

Random Select(No Shortcut)
Edge Select Mode
Random Select(No Shortcut)
Face Select Mode

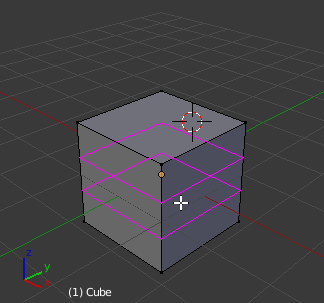

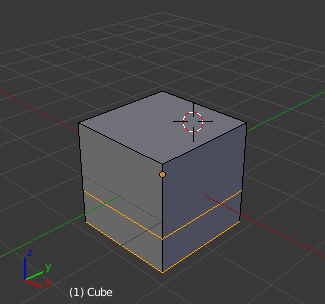

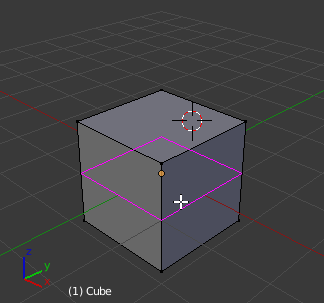

Loop Cut

Loop Cut(Ctl + r) Loop Cut #2 (マウスホイール or 2 Edge Slide(No Shortcut)

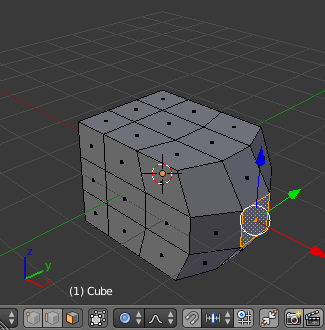

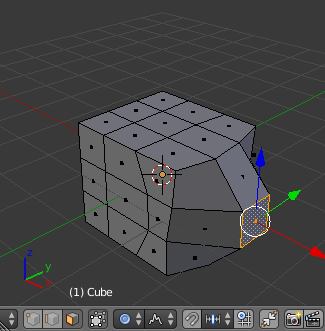

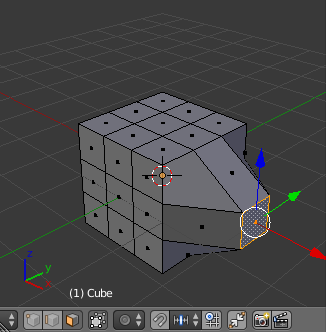

Proportional Editing mode

Proportional OFF Proportional ON Smoth (o) Proportional ON Random (o)

 *Proportionalの有効範囲はマウスホイールで変更可能です。

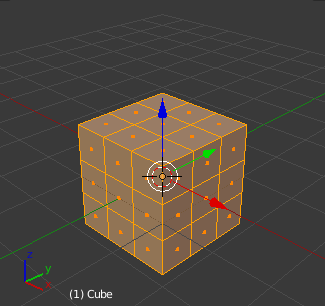

Shear and To Sphere

Select

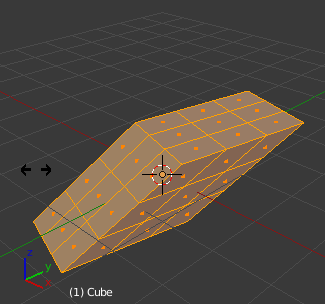

Shear(Ctl+Alt+Shift+s)
Mouse 左右でゆがみの大きさ調整

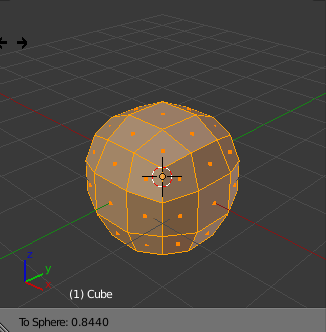

To Shphere(Alt+Shift+s)
Mouse 左右で球体レベル調整

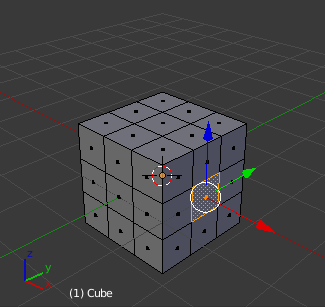

Extrude

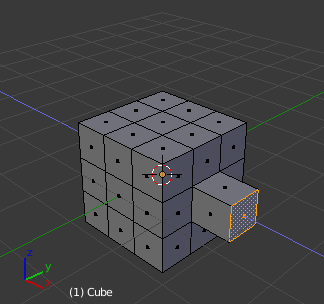

Select Extrude(e)

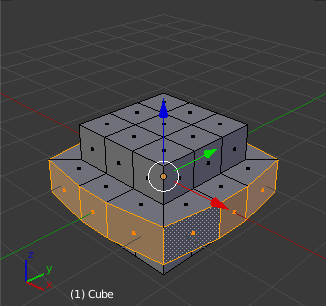

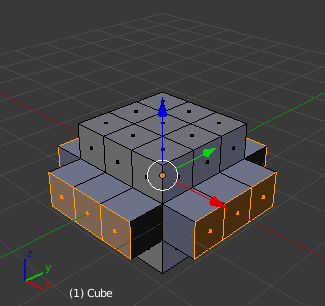

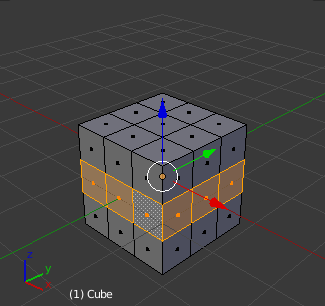

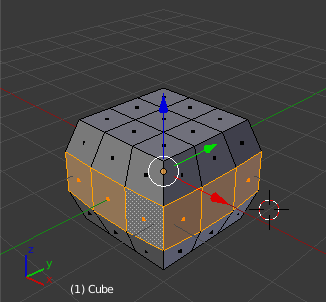

Push/Pull & Extrude

Select Push/Pull(No Shortcut) Extrude Region Vertex Normals
(No Shortcut)

Extrude Individual Faces(No Shortcut)

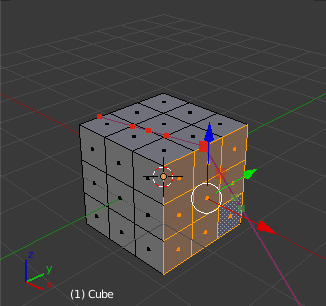

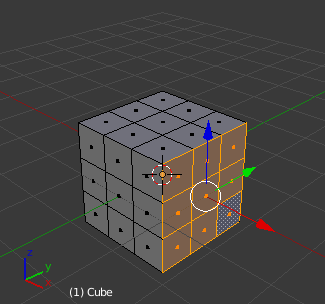

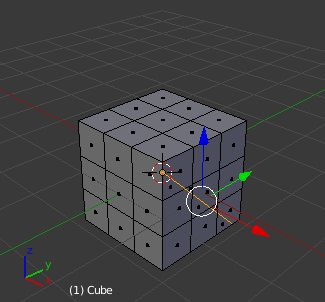

Bisect & Knife
Bisect = 2等分

Select Bisect(No Shortcut) Knife(k)

※Knifeに面選択は関係ありません。無選択の領域もKnifeの対象になります。

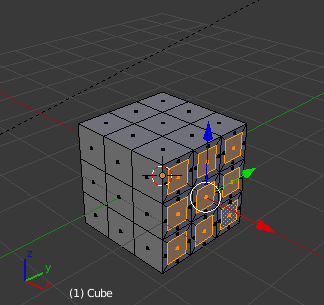

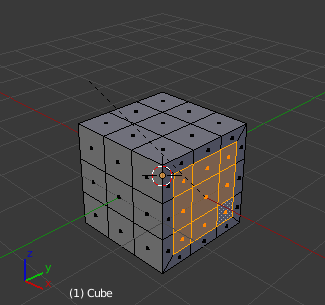

Inset

Select Inset(i) Inset(i → i)

※その他、Outset(o)、Boundary(b)のオプションがあります。

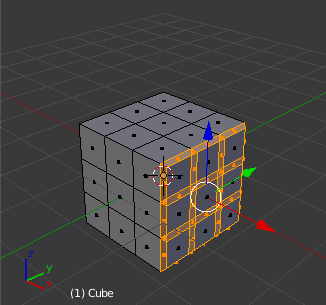

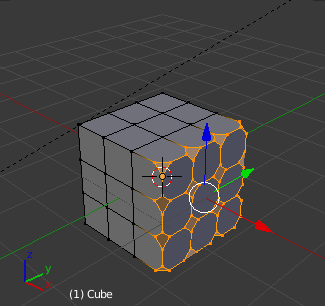

Bevel

Select Bevel(Ctl + b) Bevel Vertex(Ctl + b → v)

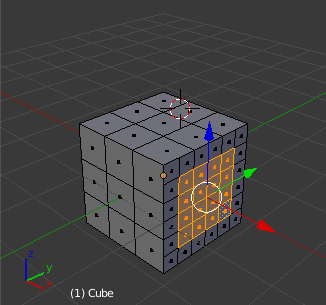

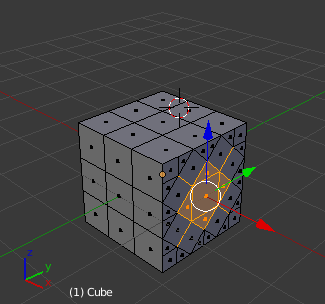

Un-Subdivide


Select Un-subdivide(No Shortcut)

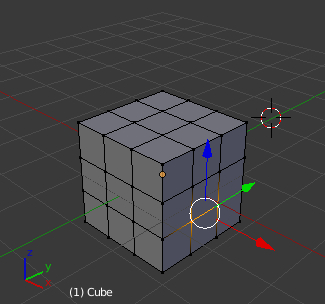

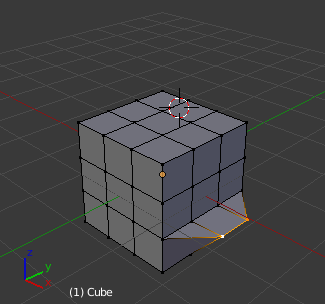

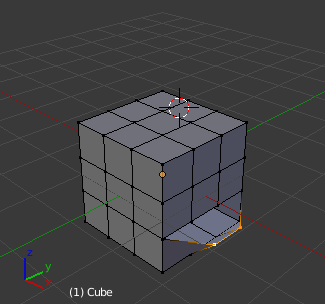

Rip

Select Rip(v) Rip(Alt + v)



Vertex Connect

Select Delete Vertex
(x select "Vertices")

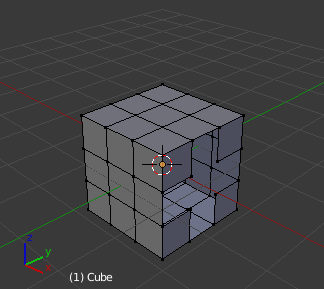

Delete Vertex
(x select "Edges")

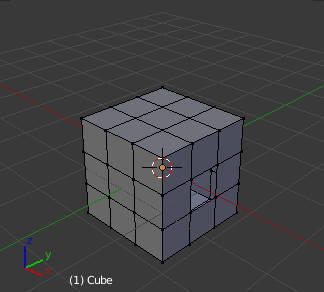

Delete Vertex
(x select "Faces")
Delete Dissolve Vertex
(x select "Dissolve Vertices")

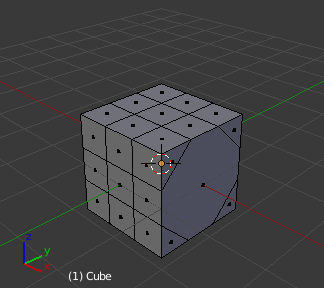

Delete Dissolve Edges
(x select "Dissolve Edges")

Delete Edge Collaps
(x select "Edge Collaps")

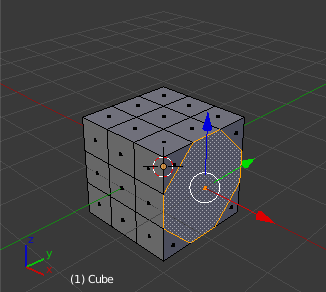

Delete Edge Loops
(x select "Edge Loops")

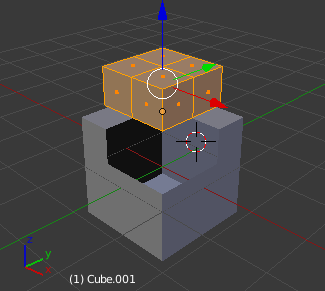

Separate

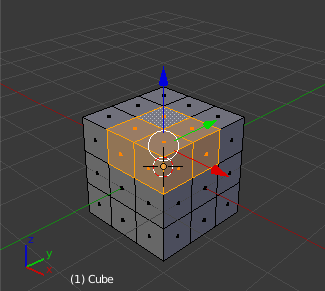

Select Separate Selection
(p select "selection")

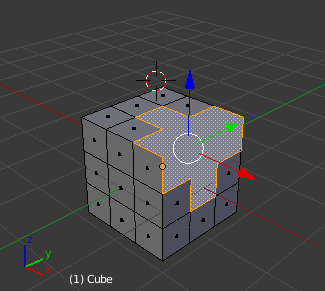

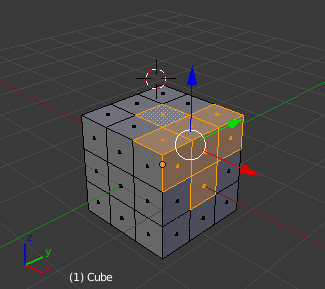

Dissolve

Select Dissolve Faces
(x select "Dissolve Faces")

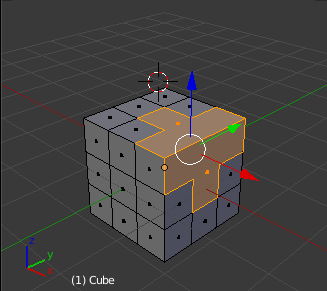

Limited Dissolve
(x select "Limited Dissolve")

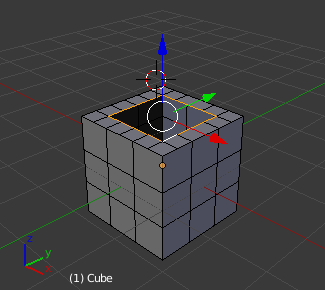

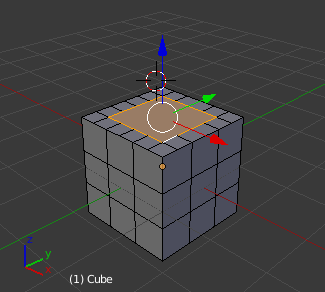

Fill

Select Fill(f) Grid Fill(No Shortcut)

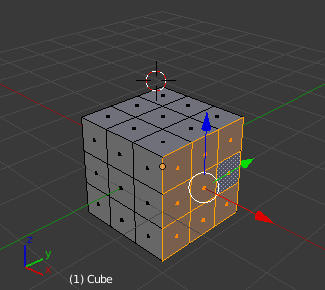

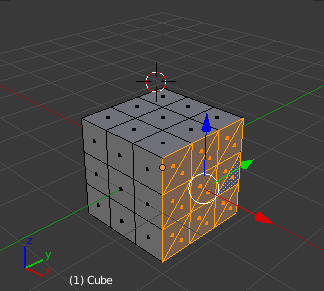

Triangulate Faces


Select Triangulate Faces(Ctl + "t")

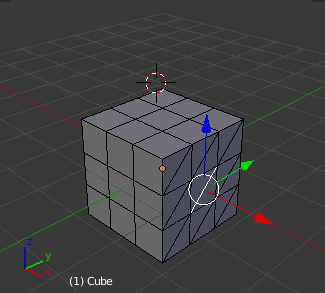

Rotate Selected Edge


Select Rotate Selected Edge(No Shortcut)

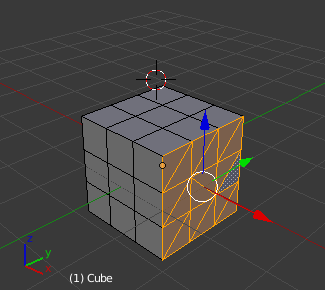

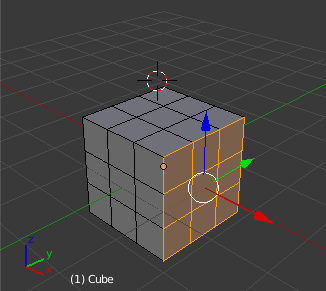

Tris to Quads


Select Tris to Quads(Alt + "j")

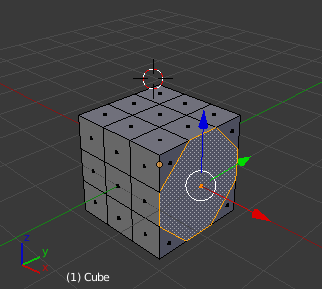

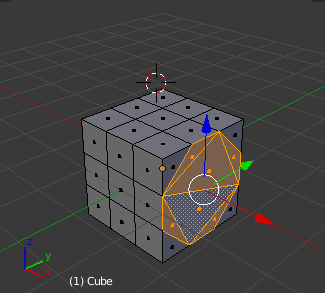

Triangulate Command

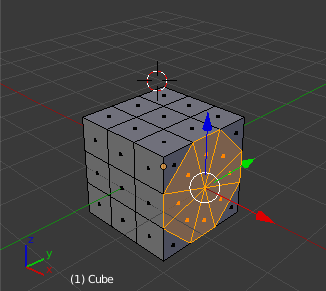

Select Poke Face(Alt + "p") Triangulate Faces(Ctl + "t")

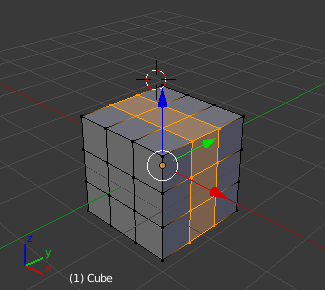

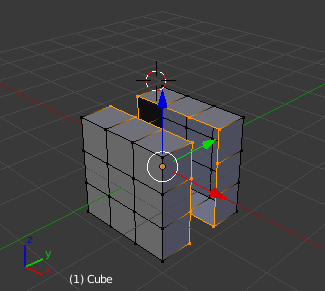

Bridge Edge Loops


Select Bridge Edge Loops(No Shortcut)
